Quilt as You Go Tote

Have you been following the Island Batik Ambassador Quilt As You Go challenge projects? Lots of fun inspiration going on this month.

Quilt As You Go

I decided to make a tote to carry my mat and rulers. I pieced my fabric strips directly to a Peltex Flex Foam base which doubled as the quilting giving the seams a fun puffy definition.

new camerabag


(2) 20 1/2” wide x 23” long Peltex Flex Foam
(2) 20 1/2” wide x 23” long lining fabrics
(1) 20 1/2” wide x 23” long backing fabric
6 1/2” center square
Various 2 1/2” strips – see chart below for cutting
(1) 8” x 43” pocket fabric (optional)
(1) 7 1/2” x 20” Peltex for inside of ruler pocket (only if making pocket)
2 1/2” x 16” cardboard or corrugated plastic for bottom of bag
86” of strapping – or make your own handles
3 1/4” x 20 1/2” wide bottom border strip

Strip Cutting:

new camerafabrics

Warm colors – 2 1/2” wide strips
#2 – 6 1/2” long
#3 – 8 1/2” long
#6 – 10 1/2” long
#7 – 12 1/2” long
#10 – 14 1/2” long
#11 – 16 1/2” long
#14 – 12” long
#15 – 12” long
#18 – 8” long
#19 – 8” long
#22 – 4” long
#23 – 4” long

Cool colors - 2 1/2” wide strips
#4 – 8 1/2” long
#5 – 10 1/2” long
#8 – 12 1/2” long
#9 – 14 1/2” long
#12 – 16 1/2” long
#13 – 18 1/2” long
#16 – 12” long
#17 – 12” long
#20 – 8” long
#21 – 8” long
#24 – 4” long
#25 – 4” long

1. A walking foot is needed for this project.
2. Your presser foot lifter has a spring in it and it can be briefly lifted higher than the up position to more easily slide the foam in place.
3. Strips #14 - 25 have been cut shorter to save on fabric. Just center the strip in place.
4. As the block grows strips will hang over the edge but will be trimmed later.

Mark the foam

Draw a line 20 1/2” down on foam. Then mark the center vertical and horizontal of that block.

new cameramark center

Add the Strips

Strips will be sewn clockwise starting in the upper left corner. You will sew the strips the same way you would for foundation piecing except you are sewing to the foam.

new camerano color orderCenter the 6 1/2” square on your marked lines.

new cameracenter square

Place piece #2 pretty on top with pretty sides touching. Make edges even and sew using a 1/4” seam allowancenew camerastep 1

Flip piece #2 out. Instead of pressing the foam repeatedly with a hot iron, use a Clover Roll and Press camerastep 2

Continue to add strips in a clockwise direction.

new camerastep 3

Fabric will start to hang over the edge of the foam. This will be trimmed off when the block is complete. Strips 14-25 are cut shorter to save on fabric that will hang over the edge. Just center them when sewing.

new camerastep 5

After the block is finished mark a line 2 3/4” up from the bottom of the foam.

new camerastep7

Place the edge of the bottom border strip on this line with right sides touching. Sew using a 1/4” seam. Flip out and press with the Roll and Press tool.

new camerastep 8

new camerastep 9

Topstitch 2” up from the bottom of the bag to help create a fold line for the foam. Then set this aside.

Make the Pocket (optional)

Fold pocket fabric in half. Sew the two long edges using a 1/4” seam allowance. Leave the short edge open.

Turn pretty side out. Insert the 7 1/2” x 20” Peltex strip inside the pocket and push it all the way up to the fold. Topstitch 1” from folded edge (this is the top of the pocket).

new camerastep 12

Stitch to the bag backing fabric. Line the open edge of the pocket to the bottom edge of the backing fabric. Pocket will be 1” from the top of the bag. A detailed pocket making tutorial can be found HERE.

Topstitch 2” from the bottom edge of the bag to create a fold line for the foam.

new camerastep 13


Attach Handles and Ties

Make and attach your handles. I cover store bought woven strapping.

new camerastrap

Handles are lined up with the edge of the back pocket. NOTE: Make sure handles are facing down when attached.

Make and attach two narrow ties to the center of the front and back. You could also substitute ribbon, button and loop or snap if you like.

new camerastep 23

Assemble the Outer Bag

NOTE: Wonder Clips are easier than pinning.

Place the front and back together with pretty sides touching. Sew three sides using a 1/2” seam allowance.

new camerastep 14

Square the Corners

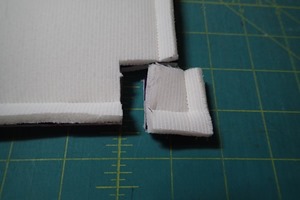

Draw and cut a 1 1/4” x 1 1/4”  square off each bottom corner. Pull them out to square up the bottom of the bag and sew using a 1/2” seam. Set the outer bag aside.

new camerastep 16

new camerastep 18

Assemble the Lining

Make the lining of your bag but be sure to leave an opening on the bottom edge for turning.

Square the corners the same as you did for the outer bag.

Assemble the Bag

Turn the lining pretty side in and the bag pretty side out. Stuff the bag into the lining. Make sure the handles and ties are stuffed down between the layers.

Make the edges even and sew around the top of the bag.

new camerastep 24

Turn right side out through the opening left at the bottom of the lining.

Before you close this opening, top stitch around the top edge of the bag to keep everything flat.

Insert a piece of cardboard or corrugated plastic (can be found at Home Depot) into the opening at the bottom of the lining. This will be hidden between the lining and the outer bag and keep the bottom stiff.  NOTE: be sure to round the edges of the insert.

Then sew the opening shut.

new cameracorplast

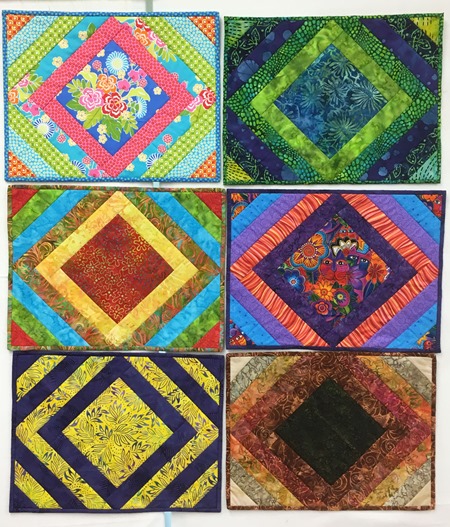

Color variations

new camera1new camera2

Pair it with a flat zipper bag for your smaller rulers found HERE.

new cameratwo bagsnew camerabag back

Want a faster project check out the June Taylor quilt as you go kits at Joann Fabrics and turn them into something fun!
