EQ7 Piglet Tutorial and Give Aways

Thanks for hopping in for day #3

Today’s tutorial is a piglet in a summer bonnet. This is a looong tutorial with lots of steps.

If you don’t have EQ you can download the PDF pattern at the bottom of this post.

EQ7 Piglet Tutorial

pigletSummer Piglet
©2013 Carol Steely

Step 1 – Set up the work table
Open a new file. On the block worktable select BLOCK>NEW BLOCK>EASY DRAW + PATCHDRAW.

Go to DRAWING BOARD SET UP>PATCHDRAW>OPTIONS and turn off the auto fill when patch is closed. It will make everything easier to see.

board set up

Select the Pick Tool pick-tool_thumb1. Enter the following on your Precision Bar

Block size: 10 x 10
Snaps: 40 x 40
Graph paper: 2 x 2

Set the two snap options like the photo below

bar set 1

Step 2 – Draw the Body
Working on the Applique Tab, draw a large ellipse using the Ellipse Tool ellipse tool

With the shape still selected click the Move Selected Segments to Center Button center. This will center your shape on the work space.

Convert it the shape to a patch patch.

Save to Sketchbook. I like to save steps often.

step 1

Step 2 – Shape the Body

Using the Shape Tool shape double click on one corner of the ellipse. This will add a node. Grab and drag that node to make the body look a little more squared.

step 2

Repeat for all the corners.

Save to Sketchbook.

Step 3 – Draw the Head and Ears
Select the Ellipse Tool ellipse tool . Hold the CTRL Key to draw a perfect circle for the head. Drag it in to place and convert to a patchconvert patch.

step 4

Select the second shape on the Polygon Flyout tool.

step 5Draw a triangle for the ear.

Using the Shape Tool shape  click on the sides of the triangle one at a time and select the Convert Line to Curve Button line to curve.

Now go back and select each line again. Grab and drag the nodes to shape the ear.

step 6

When you like the shape of the ear clone it clone and flip it flip left right.

Select pick-tool_thumb1 and drag the ears in to place.

Save to Sketchbook.

step 7

Step 4  - Draw the Face
Use the Ellipse Tool to draw a nose ellipse tool. Drag it in to place and convert to a patch convert patch.

Hold the CTRL Key and use the Ellipse Tool to draw a perfect circle for the eye. Convert to a patch convert patch. Clone the eye clone

With the clone selected go to BLOCK>RESIZE. Resize the clone by 75%. Move it in place to create the eye center.

step 8

Drag the Pick Tool pick-tool_thumb1over the entire eye to select it as a group. Clone it clone. Drag it in to position.

Click the Rectangle tool rectand draw the nose center. Convert to a patch convert patch, clone it cloneand drag it in to place.

Save to sketchbook.

step 9

 Step 5 – Draw the Legs

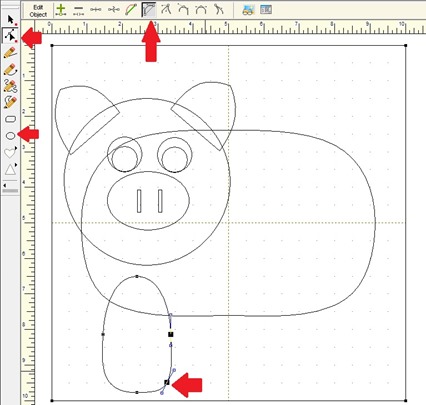

Use the Ellipse Tool ellipse tool to draw a leg
. Convert it to a patchpatch .

Using the Shape Tool shapedouble click on the lower corner to add a node. Grab and drag the node to shape the leg. Repeat for the other side.

step10

To make the leg larger select it with the Pick Tool pick-tool_thumb1. Hold the CTRL key and use your mouse to grab a corner node and drag to size the length and width proportionately.

Select and clone clone  the leg three times.

Drag the legs one at a time in to place.

Hold the CTRL key and click the center of the selected leg. You will get a rotation arrow. Grab the arrow and rotate the leg manually to your liking.

Save to Sketchbook.

step11

step 12

Step 6 - Draw the Tail
The tail is done in two sections but made to look like it’s one continuous curl. If you do it as one curl the overlapping section will not fill with color.

Select the Brush Stroke Tool brush. On the Precision Bar set the following  properties for your line.

Contour : straight stroke
End Cap: first style (flat)
Width: 1
Boldness: 1

brush

Draw the curl of the tail. Click the Send to Back Button send back button.

tail1

Using the Shape Tool shape, drag the nodes to adjust the curve to your liking. Make sure the end of the shape butts up and doesn’t cross under itself. Convert to a patch Untitled.

Save to sketchbook.

tail 2

Select the Brush Stroke Tool brush. On the Precision Bar set the following properties for your line.

Contour : straight stroke
End Cap: third style
Width: 1
Boldness: 1

brush2

Draw the remainder of the curly tail. This time tuck the end of the curve under the first one. Click the Send to Back Button send back button .

tail 3

Using the Shape Tool shape, drag the nodes to adjust the curve to your liking. Convert to a patch Untitled and save to sketchbook.

tail4



Step 7 – Add Ground
Click on to the  Easy Draw Tab. Use the Line Tool lineto draw the ground.

Save to Sketchbook.

pig ground

 Step 8 - Get the Hat and Bow Parts

Select LIBRARIES>BLOCK LIBRARY>04 CLASSIC APPLIQUE>FLOWERS IN VASES>Nosegay Quilt from McKim Studios. Add this block to your Sketchbook.

vase

Go to LIBRARIES>BLOCK LIBRARY>SEARCH>NOTECARD>RIBBON.

Select and add the Fat Ribbon 2 to your Sketchbook.search ribbon

In Sketchbook select the Stencils Tab. Right click the ribbon and move it to the Motif tab.

ribbon2

Step 9 – Add the Hat
Open SKETCHBOOK>BLOCKS and place the Nosegay block on the work table.

Working on the Applique Tab, use the Pick Tool pick-tool_thumb1to select just the vase. Hold the CTRL key and hit the C key to place a copy on the clipboard.

vase copy

Open Sketchbook again and place the piglet back on the work table.

Working on the Applique Tab, Hold the CTRL key and hit the V key to paste the vase on the worktable.

With it still selected, drag it to the top open area of the block so you have room to work. Flip it flip tb.

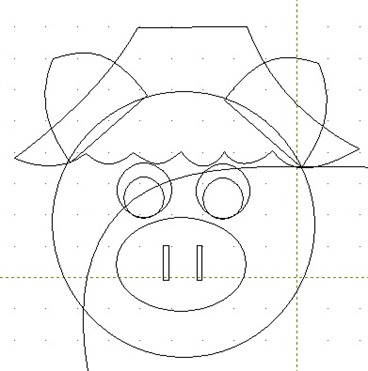

Using the shape tool shapedouble click on both sides of the hat to add a node.

hat1

Select the added nodes again and click the Break Curve button break to remove the top of the hat.

hat 2

Use the Line Tool lineto draw a flat hat top.

hat3

Use the Pick Tool pick-tool_thumb1 to select and delete the curved piece that we separated.

Select and drag the hat on to the piglets head. Line the bottom of the hat just below the ears so they look like they are peeking out of the hat top.

Fine Tuning:

#1- To adjust the size of the hat hold the CTRL key and use your mouse to grab a corner node and drag to size without changing the proportions.

#2 - You may have to adjust the size of your piglet for a nice fit on the block. Hold the CTRL Key and A key. This will select the entire block as a group. Hold CTRL Key and use your mouse to grab and drag a corner node to resize it without changing the proportions.

#3 - You may need to adjust the position of the eyes and nose. Drag the Pick Toolpick tool over the eyes and nose to select them as a group. Then drag them in to place.

Save to Sketchbook.

hat4

Step 10 - Add the Ribbon
Open the SKETCHBOOK>MOTIFS and place the ribbon on the worktable.

Hold the CTRL key then hit the A key to select the entire design as a group.

Hold the CTRL key and hit the C key to place a copy on the clipboard.

ribbon3

Open the Sketchbook again and place the piglet on the worktable.

Working on the Applique Tab, hold the CTRL key and hit the V key to paste the ribbon on the worktable.

With it still selected hold the CTRL Key and use your mouse to grab and drag a corner node to resize it without changing the proportions.

ribbon1

Hold the CTRL Key and click the center of the ribbon to set the rotate feature. Drag the arrow to rotate it to your liking. Drag the ribbon in to place at the piglet’s neck.

Save to Sketchbook.

ribbon2



Step 11 – Adjusting the Overlaps

With the piglet block on the worktable select BLOCK>CONVERT TO GUIDES. Save this to Sketchbook.

Now open Sketchbook and place your finished piglet block back on the worktable. He will be sitting over the guides.

Easily eliminate the thickness of all the fabric overlaps using the same process that was done to remove the hat top in step 9.  This is what it looks like as you remove the overlapping fabrics. You will see the Guide Lines after you break the nodes to help you tweak and keep the original shape of the piece.  Remember you need to have closed patches in PatchDraw so finish the shapes using the Line tool.

When finished adjusting save to Sketchbook. Click BLOCK>CLEAR GUIDES then click refresh refresh.

remover layers



Step 12 – Color the Piglet
Click the Color Tab. Use the Pick Tool and the right mouse button to re-order any pieces that are out of place. Especially the legs.

step 14

Whew! You’re done. Have fun coloring your piglet.



I’m thinking baby quilt. How about you?

pig

Hope you learned something fun and new!
